Perforated Unistruct Channel Roll Forming Machine Factory Manufacturer

FOB Reference Price:Get Latest Price
$50,000.00 - $65,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
BOSJ
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 60 Negotiable
Customization:
Customized packaging (Min. Order: 1 Sets)
Customized logo (Min. Order: 1 Sets)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China
Brand Name:
BOSJ
Control type:
Auto/manual
Control system:
PLC
Material of cutting:
Cr12
Color:
Red
Application:
Outdoor
Type:
Fully Automatic
Certification:
CE ISO
Production Speed:
10m/min
Power:
22kw
Usage:
Industrial Profiles
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
60 Set/Sets per Year
Packaging & Delivery
Packaging Details
container packing of the line sutiable for overseas shipping. packing style :Naked and covered by plastic sheet, spare parts and some small parts packed in wooden box Perforated Unistruct Channel Roll Forming Machine Factory Manufacturer
Port
SHANGHAI
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 60 To be negotiated
Product Description

Product Application

1. Standard thickness: 1.5mm,1.6mm, 2mm,2.3mm, 2.5mm,2.75mm

2. Standard length: 3000mm, 6000mm and customized

3. Standard size: 41*21, 41*25, 41*41,41*62,41*82, back to back, 41*41.41*62,41*123 and so on

Other sizes be produced according to customer’s drawing.
Strut channel is used to mount, brace, support, and connect lightweight structural loads in
building construction. These include pipes, electrical and data wire, mechanical systems such
as ventilation, air conditioning, and other mechanical systems. Strut channel is also used for
other applications that require a strong framework, such as workbenches, shelving systems,
equipment racks, etc. Specially made sockets are available to tighten nuts; bolts etc. inside


NO.
Parameter
Unit
Material
Galvanized Steel
Speed
10
m/min
Material of roller
GCR15

Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization,no pollution

5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

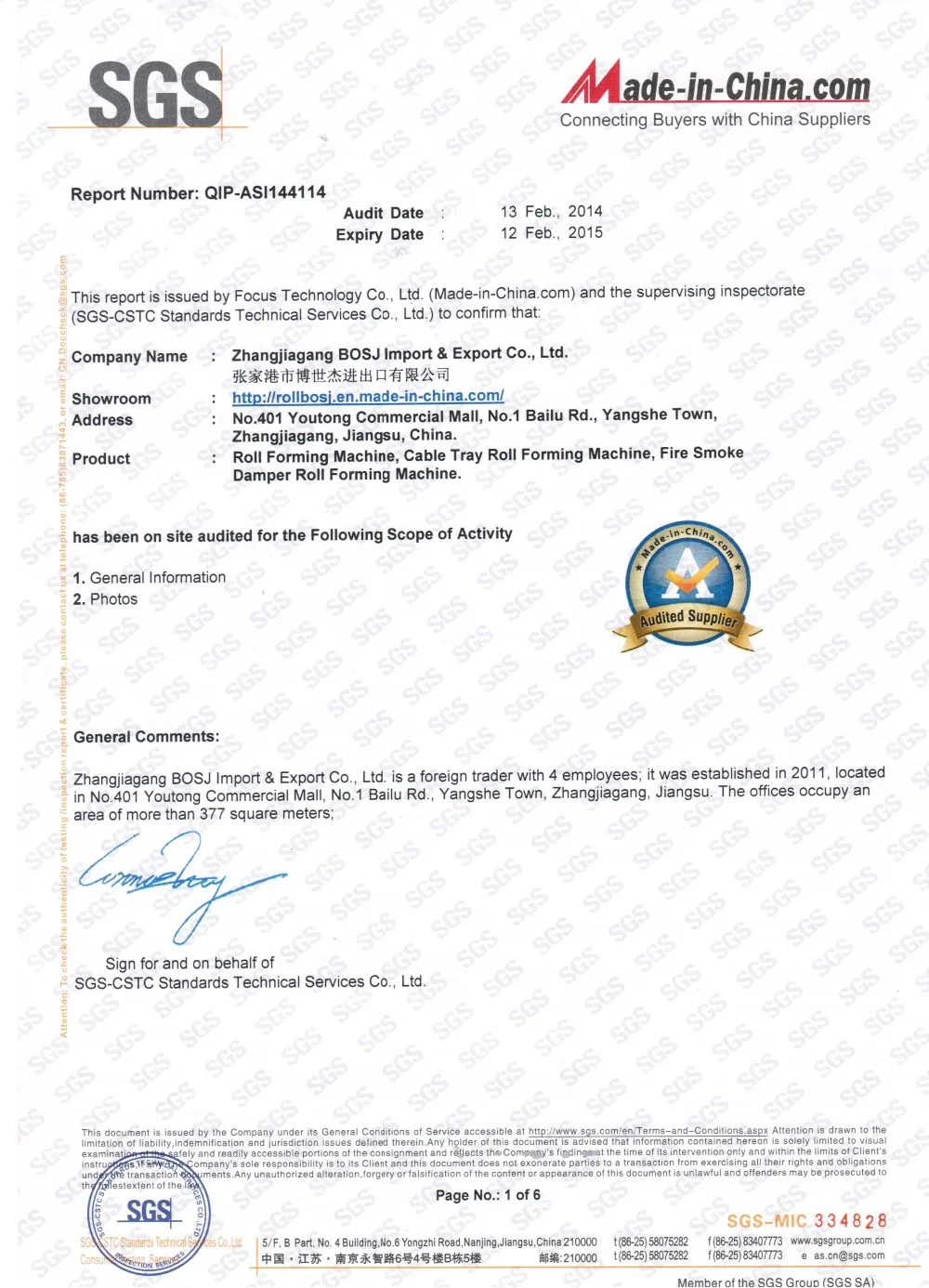

Certifications
Detailed Images

Machine Parts

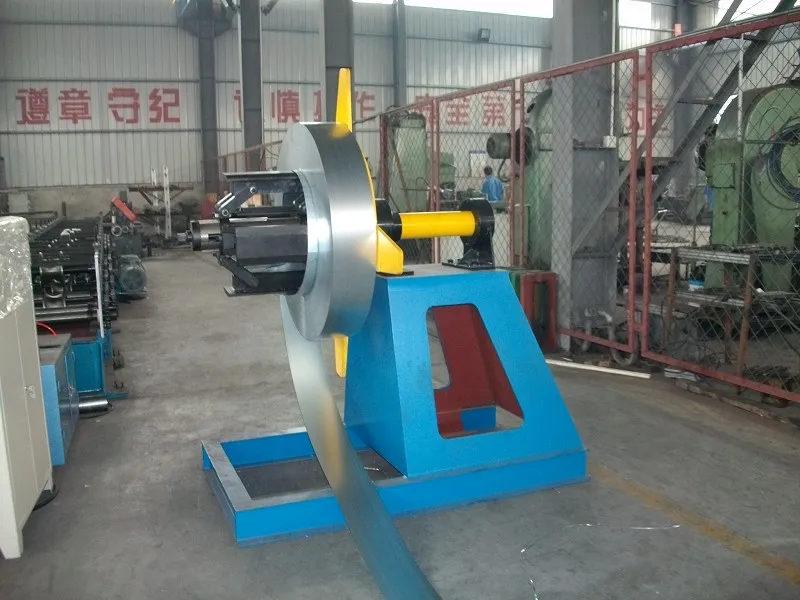

Name:Passive De-coiler


Width of material sheet:≤250 mm;Thickness of material sheet:≤2.5mm;

Inner diameter: 508mm Range of expanding: ф480-520 mm

Maximum outer diameter: φ1300mm, loading: ≤3T

Main Features

Name:Leveler


Working roller: Five rollers type leveling machine

Motor:380V 5.5KW 4 grade

Machine Parts

Name:servo feeder

Function:material feeding
Motor: 380V 3KW 4grade,additional air compressor(Air pressure0.5m3/min pressure0.6MPa )

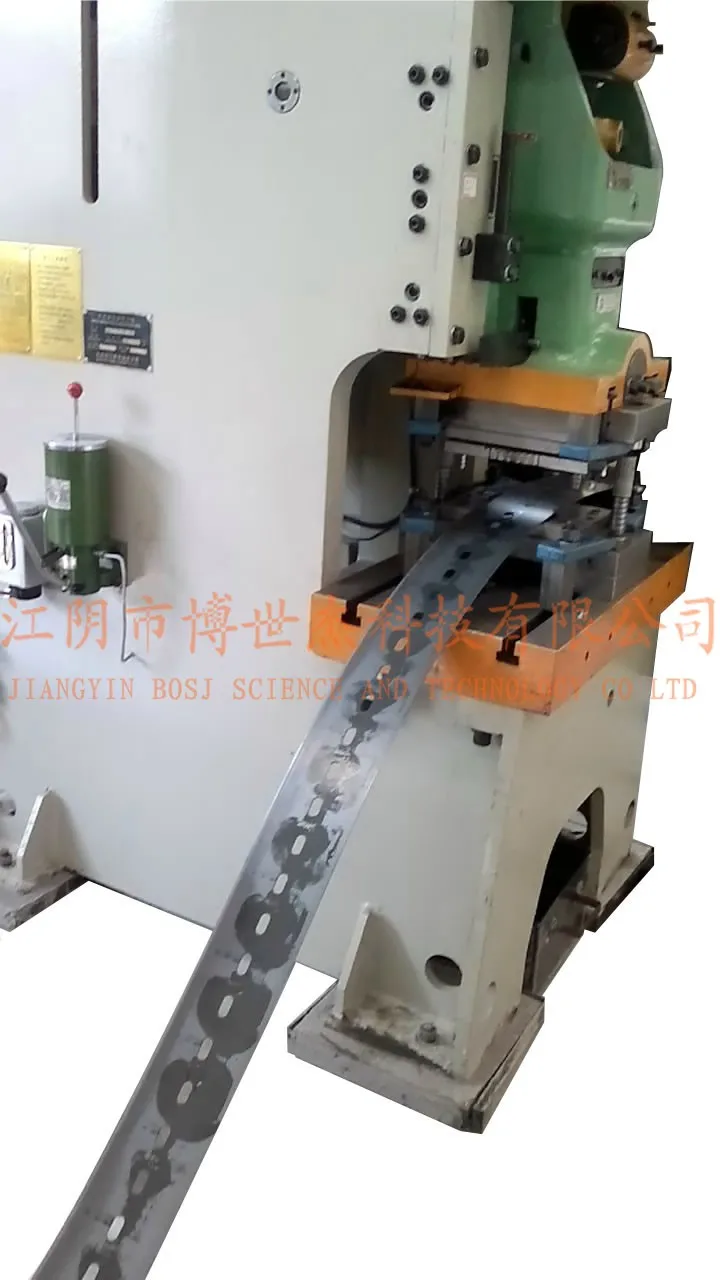

 Punching press
Structure:JF21-80
Punching press: Uses the steel plate welding fuselage, the rigidity is strongwith good appearance .Uses the combined type air operated friction clutch.

Motor:380V 2.5KW 4grade

Main Features

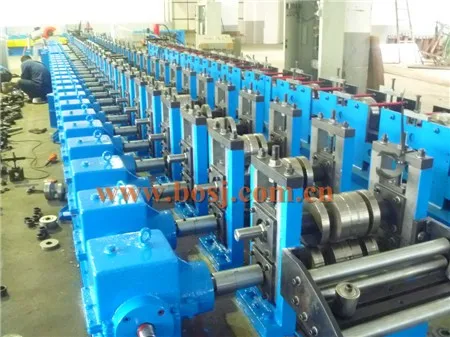

Name:Main forming machine


Forming stations:24stations(roller)

Forming machine:C channel

Forming frame:Dragon-type,gearbox drive

Max. Feeding width:≤200mm

Max. Feeding thickness:2~2.5mm

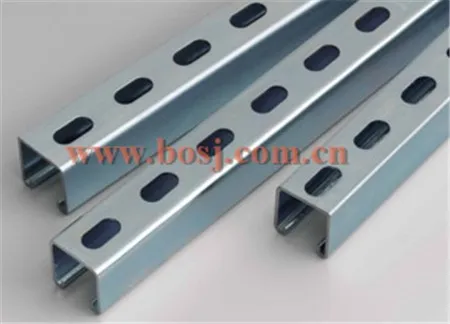

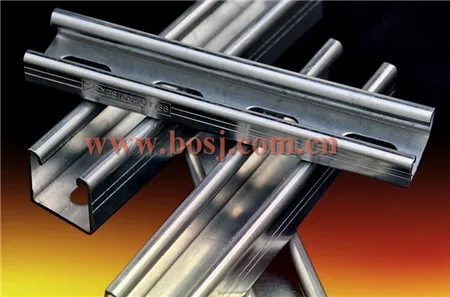

Final Products

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

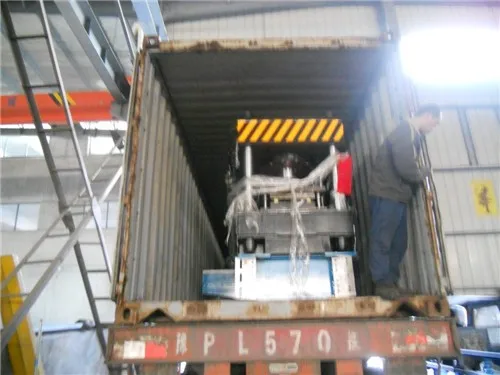

Packing & Delivery
Packaging
Size
123 (L) * 456 (W) * 789 (D)
Weight
1.2 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Packaging
Size
123 (L) * 456 (W) * 789 (D)
Weight
1.2 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
